WELDING HOSE
Rubber Twin Welding Hose is a premium welding hose, Green hose for Oxyen Red hose for Acetylene, Heat resistant EPDM tube and cover 2 spiral polyester yarn reinforcement, more flexible than braid reinforced hose, easier to coil and handle, Coiled coupled assemblies are available in 25 and 50 foot lengths. It can be used with most current fuel gases, including acetylene, propane, and MAPP gas.

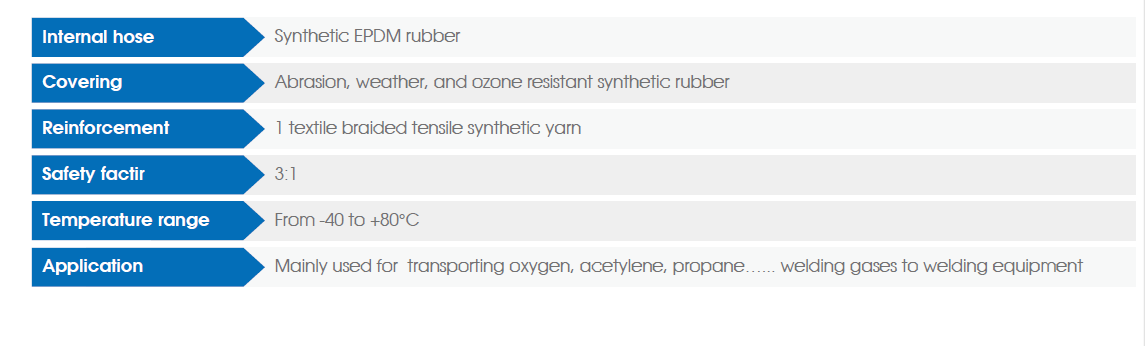

Rubber Twin Welding Hose Construction:
Tube: Black, smooth, synthetic rubber
Size: 3/16”-1/2”
Working pressure: 20bar
Lenght: 50m/100m
Weight: 0.15–0.4kg/m
Color: red and green, red and blue
Reinforcement: High strength synthetic yarn braiding
Cover: Blue/green/red, smooth, synthetic rubber
Rubber Twin Welding Hose Application:
Designed for welding, cutting and allied processes. Specific welding hose cartering for oxygen, carbon dioxide, nitrogen, argon and fuel gases including acetylene, natural gas, methane and propane available upon request.
Rubber Twin Welding Hose Temperature: -32℃ (-90 ℉ ) to 80℃(+176 ℉)
Rubber Twin Welding Hose Characteristics:
● Anti abrasion smooth cover
● Weather and ozone resistant cover
● Flexible,light weight,less distortion
Specification:
| PART NUMBER | HOSE SIZES | OD | OPERATING PRESSURE | BURST PRESSURE | BEND RASIUS | WEIGHT | LENGTH PER PCS | ||||
| ID | DN | MM | INCH | MM | BAR | PSI | BAR | PSI | MM | KGS/M | METER |
| W-05 | -3 | 4.80 | 3/16” | 12.00 | 20 | 300 | 60 | 900 | 95 | 0.15 | 5~100 |
| W-06 | -4 | 6.40 | 1/4” | 13.00 | 20 | 300 | 60 | 900 | 125 | 0.17 | 5~100 |
| W-08 | -5 | 8.00 | 5/16” | 15.00 | 20 | 300 | 60 | 900 | 160 | 0.23 | 5~100 |
| W-09 | / | 9.00 | / | 17.00 | 20 | 300 | 60 | 900 | 160 | 0.27 | 5~100 |
| W-10 | -6 | 9.50 | 3/8” | 18.00 | 20 | 300 | 60 | 900 | 200 | 0.30 | 5~100 |
| w-12 | -8 | 12.70 | 1/2” | 22.00 | 20 | 300 | 60 | 900 | 255 | 0.40 | 5~100 |
Delivery
HYRUBBERS built excellent transportation newt work. The rubber hose could be delivered to clients by sea, by air, by highway transportation, to make sure the clients get the rubber hose in time.
