PVC SPIRAL STEEL WIRE REINFORCED HOSE
PVC Steel Wire Reinforced Hose is also called PVC spring wire hose, PVCpump suction hose, PVC flexible suction hose, PVC water hose pipe, PVC water delivery hose, clear wire reinforced hose, spring water hose, spring suction hose etc. Which is ideally PVC hose designed for water suction or delivery in agricultural applications.
Application:
This Pump Suction Hose is widely used for suction and delivery of water or oil in agricultural irrigation applications, like farm irrigation, irrigation plants. meanwhile, it is also usually used for equipped with water pumps, vacuum pumps, water tanks and other agricultural machines.
Features:
High flexible, kink and crush resistant, vacuum resistant, small bending radius for easy handling, smooth inner tube prevents materials blocked, robust steel wire reinforcement provides high pressure resistant, easily assembled with coupling and clamps.
Size: 3/4”–4”
Working pressure: 8bar–3bar
Lenght: 50m–200m
Weight: 0.36–4.8kg/m
Temperature Range: -5°C-65°C
Specification:
|
Inner Diameter |
Outer Diameter |
Weight |
W.P.(at 23℃) |
Std Length |
||||
|
inch |
mm |
inch |
mm |
kg/m |
bar |
psi |
m |
ft |
|
3/4 |
19 |
0.984 |
25 |
0.36 |
8 |
120 |
50 |
150 |
|
1 |
25 |
1.299 |
33 |
0.54 |
8 |
120 |
50 |
150 |
|
1-1/4 |
32 |
1.614 |
41 |
0.78 |
7 |
100 |
40 |
120 |
|
1-1/2 |
38 |
1.889 |
48 |
1.05 |
6 |
90 |
40 |
120 |
|
1-3/4 |
45 |
2.204 |
56 |
1.30 |
6 |
90 |
40 |
120 |
|
1-7/8 |
48 |
2.322 |
59 |
1.40 |
6 |
90 |
40 |
120 |
|
2 |
50 |
2.441 |
62 |
1.60 |
5 |
75 |
40 |
120 |
|
2-1/4 |
58 |
2.755 |
70 |
2.00 |
5 |
75 |
30 |
90 |
|
2-1/2 |
63 |
3.149 |
80 |
2.80 |
5 |
75 |
30 |
90 |
|
3 |
75 |
3.582 |
91 |
3.50 |
4 |
60 |
30 |
90 |
|
3-1/2 |
90 |
4.251 |
108 |
4.50 |
4 |
60 |
20 |
60 |
|
4 |
100 |
4.645 |
118 |
4.80 |
3 |
45 |
20 |
60 |

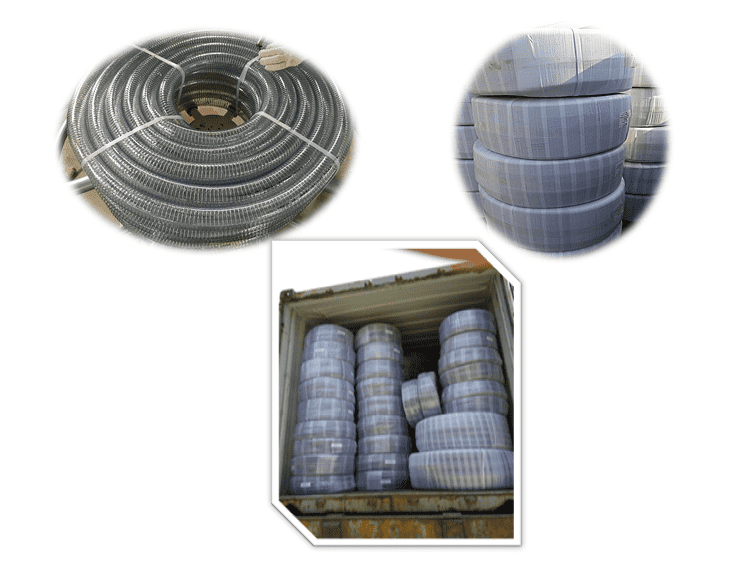

Package:
