PVC HELIX SUCTION HOSE
PVC Suction Hose is also called helix reinforced suction hose, corrugated suction hose, clear water suction hose, pool suction hose and pump suction hose etc. Which is high quality PVC suction hose designed for a wide variety of suction or transfer applications.
Application:
Widely used throughout industry in both positive and negative pressure applications, ideally for conveying and suction of water, oil, powder, granules in pump industries, constructions, mining industries, chemical factories and many other industry applications.
Features:
Excellent flexibility,
Crush and abrasion resistant,
Smooth tube for less friction loss,
Smooth cover allows easy dragging,
Weathering resistant, clear to have full visual flow of materials,
Corrosion resistant to light chemicals,
Various lengths available and can be supplied with different couplings and clamps.
Size: 3/4”–8”
Working pressure: 6bar–2bar
Lenght: 50m-10m
Weight: 0.25-23kg/m
Temperature Range: -5°C-65°C
Specification:
| Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 3/4 | 19 | 0.945 | 24 | 0.25 | 6 | 90 | 50 | 150 |
| 1 | 25 | 1.181 | 30 | 0.33 | 6 | 90 | 50 | 150 |
| 1-1/4 | 32 | 1.457 | 37 | 0.38 | 6 | 90 | 50 | 150 |
| 1-1/2 | 38 | 1.732 | 44 | 0.58 | 6 | 90 | 50 | 150 |
| 2 | 51 | 2.284 | 58 | 0.82 | 5 | 75 | 50 | 150 |
| 2-1/2 | 64 | 2.835 | 72 | 1.17 | 5 | 75 | 30 | 90 |
| 3 | 76 | 3.307 | 84 | 1.40 | 4 | 60 | 30 | 90 |
| 4 | 102 | 4.488 | 114 | 2.70 | 4 | 60 | 30 | 90 |
| 5 | 127 | 5.512 | 140 | 3.60 | 4 | 60 | 30 | 90 |
| 6 | 153 | 6.575 | 167 | 5.00 | 3 | 45 | 20 | 60 |
| 8 | 203 | 8.543 | 217 | 6.25 | 3 | 45 | 10 | 30 |
| 10 | 254 | 10.787 | 270 | 10.00 | 2 | 30 | 10 | 30 |
| 12 | 305 | 12.953 | 329 | 18.00 | 2 | 30 | 10 | 30 |
| 14 | 358 | 15.039 | 382 | 20.00 | 2 | 30 | 50 | 150 |
| 16 | 408 | 17.008 | 432 | 23.00 | 2 | 30 | 50 | 150 |
PVC Helix/Corrugated Suction Hose
Specification:
|
Inner Diameter |
Outer Diameter |
Weight |
W.P.(at 23℃) |
Std Length |
||||
|
inch |
mm |
inch |
mm |
kg/m |
bar |
psi |
m |
ft |
|
3/4 |
19 |
0.906 |
23 |
0.23 |
8 |
120 |
50 |
150 |
|
1 |
25 |
1.142 |
29 |
0.29 |
8 |
120 |
50 |
150 |
|
1-1/4 |
32 |
1.417 |
36 |
0.35 |
7 |
100 |
50 |
150 |
|
1-1/2 |
38 |
1.732 |
44 |
0.55 |
7 |
100 |
50 |
150 |
|
2 |
50 |
2.126 |
54 |
0.55 |
6 |
90 |
50 |
150 |
|
2-1/2 |
63 |
2.716 |
69 |
0.88 |
6 |
90 |
30 |
90 |
|
3 |
75 |
3.189 |
81 |
1.16 |
5 |
75 |
30 |
90 |
|
4 |
100 |
4.252 |
108 |
1.95 |
5 |
75 |
30 |
90 |
|
5 |
125 |
5.315 |
135 |
3.00 |
4 |
60 |
30 |
90 |
|
6 |
152 |
6.457 |
164 |
4.50 |
4 |
60 |
20 |
60 |
|
8 |
200 |
8.425 |
214 |
6.30 |
3 |
45 |
10 |
30 |

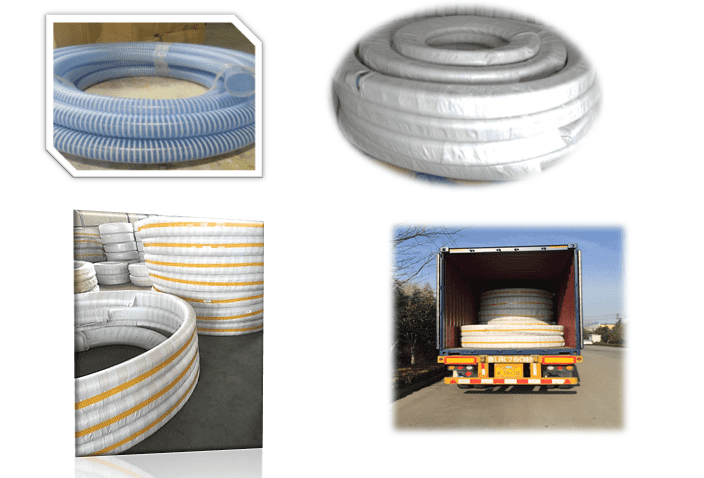

Package:
